6 Information and marking requirements 提供資訊與標示
6.1 General
The purpose of this Clause 6 is to define the information necessary for the safe selection,
installation and commissioning, operation, and maintenance of PDS/CDM/BDM. It is presented
as Table 28, showing where the information shall be provided, followed by explanatory
subclauses.
The requirements of this Clause 6 apply to all PDS/CDM/BDM, unless otherwise stated.
Since any electrical equipment can be installed or operated in such a manner that hazardous
conditions can occur, compliance with the design requirements of this part of IEC 61800 does
not by itself assure a safe installation. However, when equipment complying with those
requirements is properly selected and correctly installed and operated, the hazards will be
minimized.

All information shall be in an appropriate language, and documents shall have identification
references. Drawing symbols shall conform to IEC 60417 or IEC 60617 as appropriate.
Symbols not shown in IEC 60417 or IEC 60617 shall be identified where used.
NOTE Further guidance for the preparation of documentation is provided in IEC 61082, and for the preparation of
instructions and manuals in IEC 62079.

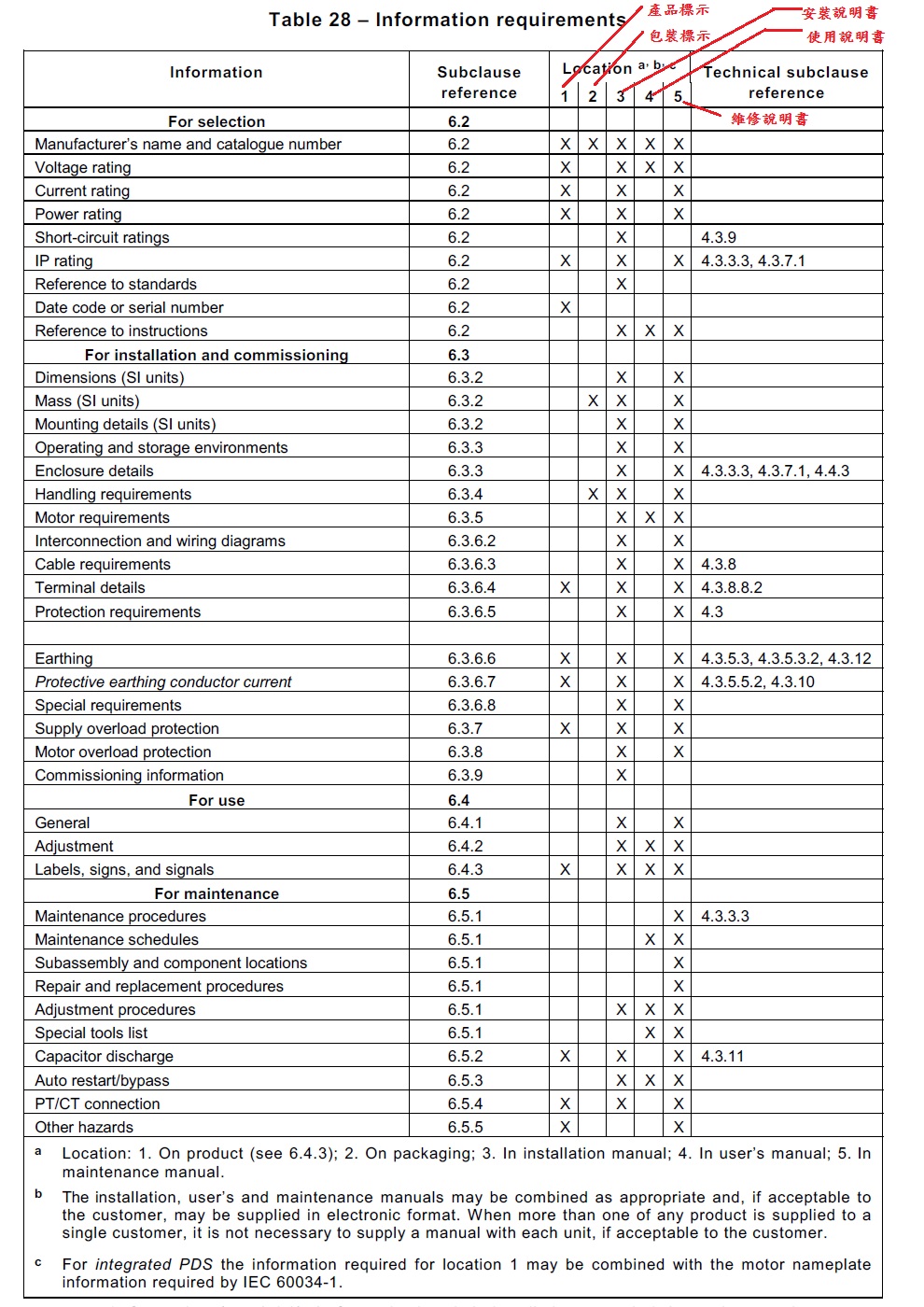

Table 28 – Information requirements
